Jinghui Intelligent Warehousing Equipment (Shandong) Co., Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | JINGHUI |
| Model Number : | ZXHJ-6611 |
| Price : | Negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 350 Tons per Month |
| Delivery Time : | 10-15 work days |
Highlight:industrial racking ,Light warehouse shelves, storage shelving
DESCRIPTION:
Product specifications: 1500 * 600 * 2000, 2000 * 600 * 2000
Number of floors: 4
Load bearing capacity: 100kg-600kg

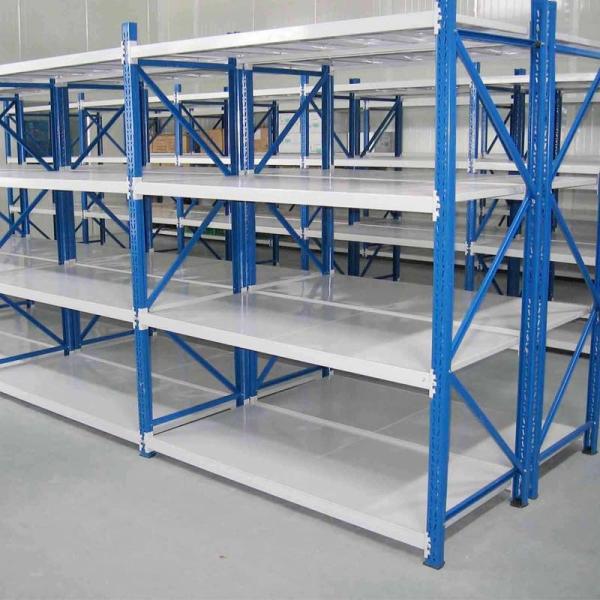

Product Introduction: Medium sized shelves, also known as layer
shelves or shelf shelves. Medium sized shelves are a type of shelf
named after the load capacity of goods, relative to heavy-duty
shelves. Medium sized shelves are generally manually loaded and
unloaded, with goods placed directly on the shelf shelves. Medium
sized shelves are widely used, not only in enterprise warehouses
but also in various storage rooms, supermarkets, hardware stores,
and daily life.
Medium sized shelves are divided into main and auxiliary section
structures, generally consisting of columns, beams, and shelves.
The columns are divided into butterfly holes and diamond holes
according to their load-bearing capacity. The thickness of
butterfly hole columns is generally below 1.5mm, and the
load-bearing capacity is within 400kg. The materials for both beams
and shelves are selected based on the single-layer load-bearing
capacity. The main section of a medium-sized shelf consists of four
columns that can be used independently, while the auxiliary section
only has two columns that need to be attached to the main section
for use. The reason is that each column has two rows of hanging
holes for crossbeams, which can be hung on both sides.
Advantage:
|
|
